150kva Three Phase Dry Type Isolation Transformer Step Down 480v To 415v H-class insulation
Summarization
SG series three-coherent-type transformers are widely used in AC 50~60Hz, input, output voltage not exceedlng 500V three phase power supply in a variety of occasions.
For a variety of input and output voltage lever, Join groups, regulating the number and location of laps(typically±5%), winding capacity allocation, single-phase secondary winding is equipped with, the use of rectiffer cirouits, take shell or not, etc.

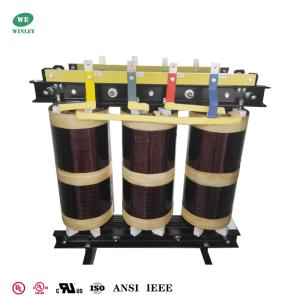

Product Photos
Main data
| Model Number | SG-150KVA |
| Power | 150KVA |
| Product name | Three Phase Transformer |
| Input Voltage | 480vac customized |
| Output Voltage | 415va customized |
| Frequency | 50/60Hz |
| Insulation class | H |
| Temperature rise | <80℃ |
| Connection Type | Yyn0 |
| Enclosures Protection Level | IP23 |
| Winding material | Enameled alum or copper |
| Advantage | Vacuum Impregnation Insulation |
| Cooling Method | Natural or air cooling |
| Certification | UL,ISO,CE |
| dimension | 850mmx 700mmx 950mm/680kg |
Technical drawings
Specification
| Rated capacity | High Voltage | Low | Connection Symbol | No-Load Loss | On-Load Loss | No Load Current | Weight | Short Circuit Impendence |
| (KVA) | (KV) | Voltage | (W) | (W) | (%) | (KG) | (%) |
| (KV) | | | | | |
| 10 | 6
6.3
10
10.5
11 | 0.4 | Dyn11
Yyn0 | 0.15 | 0.325 | 4.1 | 130 | 4 |
| 30 | 0.215 | 0.75 | 3.2 | 260 |
| 50 | 0.305 | 1.055 | 2.8 | 315 |
| 80 | 0.415 | 1.46 | 2.6 | 470 |
| 100 | 0.45 | 1.665 | 2.4 | 520 |
| 125 | 0.53 | 1.955 | 2.2 | 585 |
| 160 | 0.61 | 2.25 | 2.2 | 670 |
| 200 | 0.7 | 2.675 | 2 | 790 |
| 250 | 0.81 | 2.915 | 2 | 920 |
| 315 | 0.99 | 3.67 | 1.8 | 1085 |
| 400 | 1.1 | 4.22 | 1.8 | 1320 |
| 500 | 1.305 | 5.165 | 1.8 | 1520 |
| 630 | 1.46 | 6.31 | 1.6 | 1820 | 6 |
| 800 | 1.71 | 7.36 | 1.6 | 2105 |
| 1000 | 1.99 | 8.6 | 1.4 | 2550 |
| 1250 | 2.35 | 10.26 | 1.4 | 2900 |
| 1600 | 2.755 | 12.42 | 1.4 | 3490 |
| 2000 | 3.735 | 15.3 | 1.2 | 4220 |
| 2500 | 4.5 | 19.53 | 1.2 | 4955 |
